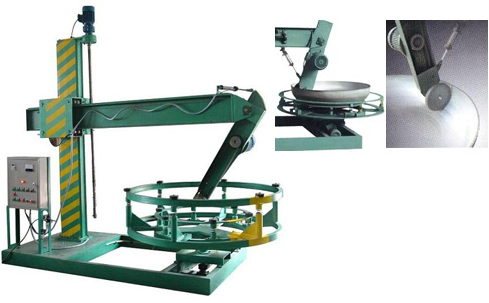

  • Dish Head Polishing Machine
  • Categories:Polishing Machine
  • Application:Mainly used in the stainless steel dish, container’s inside or outside from 60-400 mesh, with mirror polishing or flat gloss.
    Advantage:1.Using cloth emery roll, low cost and high precision, mirror polishing.the speed is two to four times of the manual polishing.
    2.Polishing speed: 6-8m2 one time
    3.competely solve the low efficiency, uneven, poor precision which caused by the manual polishing, roughness can be as high as 0.28 μ m
    4.simple in structure, easy coperation, economical and parctical.
  •

    /xsms/html37/uploadfile/20100603225808890.swf

    Model

    External range

    Inner range

    Plate’s loading weight

    Plate’s diameter

    FP-250

    φ700-φ2500mm

    φ700-φ2500mm

    1000Kg

    φ1000mm



    Lift’s power

    Xarm’s power

    Plate’s power

    Polishing power

    FP-250

    0.55Kw

    0.12Kw

    0.75Kw

    5Kw

    Speed adjustment

    variable frequency

    variable frequency

    variable frequency

    Constant speed



    Size

    Total weight

    FP-250

    3800*1500*3050mm (L*W*H)

    1300Kg

    Polishing material

    Cloth wheel nylon fiber wheel and flap wheel(sand belt for optional)

    power source

    Three phase four-wire  380V/50Hz

    Air supply

    0.4-0.6MPa
