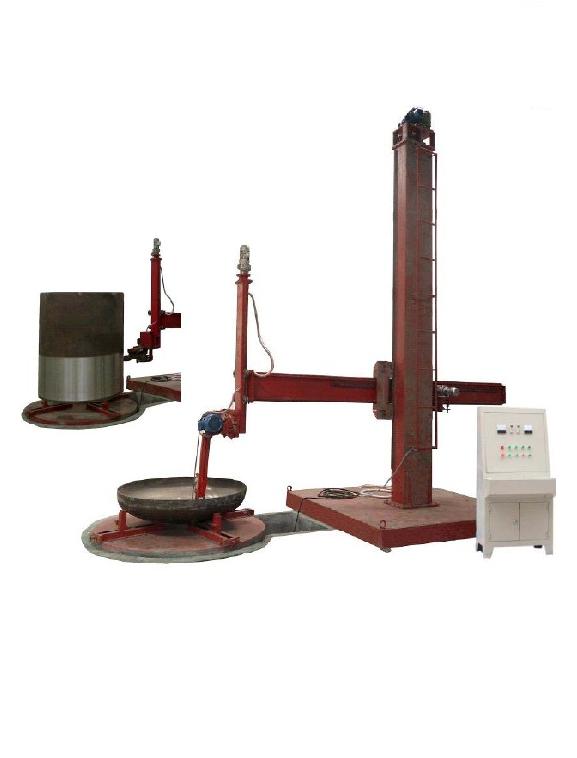

- Multi-Function Polishing machine
- Categories:Polishing Machine
- Application: Multifunction, which can be mainly used both for vessel and dish ,eal head, container’s inside or outside from 60-400 mesh, with mirror polishing or flat gloss.
Advantage:1.Using cloth emery roll, low cost and high precision, mirror polishing.the speed is two to four times of the manual polishing.
2.Polishing speed: 8－10m2 one time
3.competely solve the low efficiency, uneven, poor precision which caused by the manual polishing, roughness can be as high as 0.28 μ m
4.simple in structure, easy coperation, economical and parctical.
Model
Vessel External range
Inner range
Height
Loading weight
DP
φ600-φ4000mm
φ1000-φ4000mm
φ1000-φ4000mm
Lift’s power
Plate’s power
Polishing power
2nd Xarm’s power
0.75Kw
0.37Kw
4.0Kw
5Kw
0.25Kw
Speed adjustment
variable frequency
variable
Constant
Size
Total weight
5680*3500*
≈4000Kg
Polishing material
Cloth wheel 、nylon fiber wheel and flap wheel(sand belt for optional)
power source
Three phase four-wire 380V/50Hz
Air supply
0.4-0.6MPa
