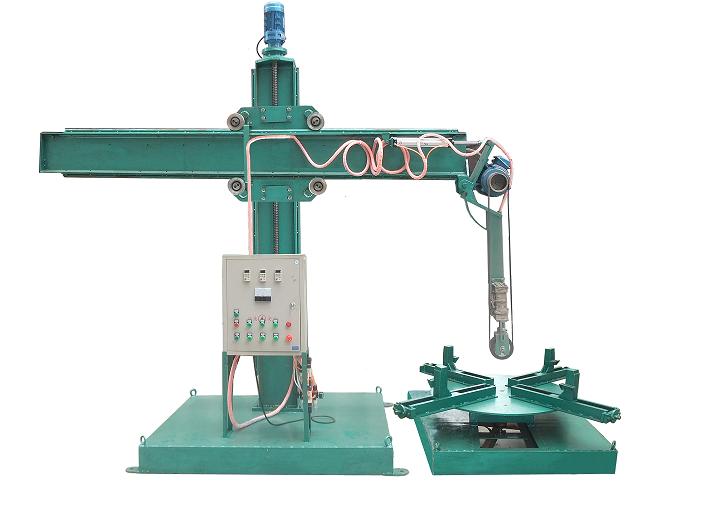

Dish Head Polishing Machine
Categories:Polishing Machine
Application:Mainly used in the stainless steel dish, container’s inside or outside from 60-400 mesh, with mirror polishing or flat gloss.
Advantage:1.Using cloth emery roll, low cost and high precision, mirror polishing.the speed is two to four times of the manual polishing.
2.Polishing speed: 6-8m2 one time
3.competely solve the low efficiency, uneven, poor precision which caused by the manual polishing, roughness can be as high as 0.28 μ m
4.simple in structure, easy coperation, economical and parctical.

Model	External range	Inner range	Bearing weight	Plate’s diameter
FP-300F1	φ600-φ3000mm	φ600-φ3000mm	1000Kg	φ1000mm
FP-300F2	φ700-φ3000mm	φ700-φ3000mm	２000Kg	φ1500mm
	Lift’s power	Xarm’s power	Plate’s power	Polishing power
FP-300F1	0.55Kw	0.12Kw	0.75Kw	5Kw
FP-300F2	0.55Kw	0.12Kw	1.5Kw	5Kw
Speed adjustment	variable frequency	variable frequency	variable frequency	Constant speed
	Size		Total weight
FP-300F1	385015003050mm ( LWH )		≈1500Kg
FP-300F2	390015003050mm ( LWH )		≈1800Kg
Polishing material	Cloth wheel 、nylon fiber wheel and flap wheel(sand belt for optional)
power source	Three phase four-wire 380V/50Hz
Air supply	0.4-0.6MPa
